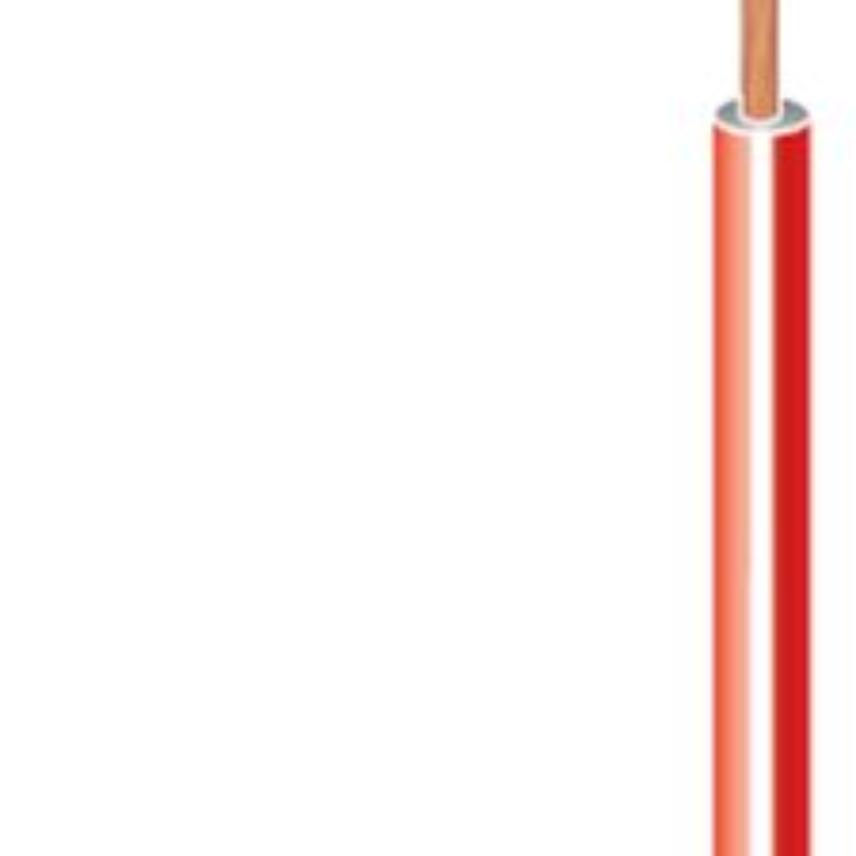

Single Core T3 AESSXF
Single Core T3 AESSXF
A ; Low tension cables for Automotive
E : Polyethylene insulated
SS : Super Slim-wall type
X : Cross-linked
F : Flexible conductor type
Read moreDescription
Description
Standards
-
ProductHMC ES 91110-05; HMC ES 91110-05
-
국가 표준JASO D 608; JASO D 608
Temperature range:-45℃ to +120℃
1. Use
- Internal wire for automotive, farm machinery and electrical harnesses
- Be used for heat resistance and cold resistance part .
- Wire harness of low electric circuits for Automotive.
- Oil resistance and flame retardant, save wiring space.
2. Specification :
- JASO D 608
- HMC ES 91 110-05
3. Material
- Conductor : Annealed stranded copper
- Insulation: Cross-linked Polyethylene(120℃)
Characteristics
Characteristics
구조적 특성
구조적 특성
도체 재료
연동선
Stranding element
19x0.16
절연
XLPE(가교 폴리에틸렌)
치수
치수
도체 단면적
- mm²
기계적 특성
기계적 특성
Cable flexibility
Flexible
Mechanical resistance to impacts
Good
사용 특성
사용 특성
Length
- m
Oil resistance
Yes
U.V resistance
Very good
연기밀도
Yes
운용온도, 범위
-45 ... 120 °C
